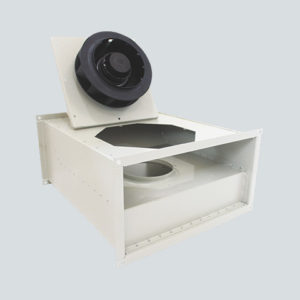

Rectangular Inline Fans Manufacturer [Hetal Industries]

Dimensions as per Blower Models

Model A B C D E F G
RI300X150-S2 345 192 375 150 300 173 323
RI400X200-S2 443 240 500 200 400 221 422
RI500X300-K4 545 340 532 300 500 322 522
RI500X250-S3 542 293 532 250 500 274 521
RI600X300-K4 645 293 642 300 600 321 623
RI600X350-M5 645 390 720 350 600 372 623
RI700X400-M7 742 442 790 400 700 423 722



Standard Models & Technical Specifications

Sr.
No.		 Model Volt
(V)		 Watts
(W)		 Current
(A)		 Speed
(rpm)		 Capacitor
(uF)		 Air Vol.
(CMH)		 Air Vol.
(CFM)		 Noise
(dBA)		 Nt. Wt.
(Kg.)
1 RI300X150-2E-S2 230 90 0.40 2700 3.15 475 279 73 7.40
2 RI400X200-2E-S2 230 95 0.42 2800 3.15 800 470 76 11.0
3 RI500X250-2E-S3 230 100 0.50 2700 4.0 900 529 77 15.7
4 RI500X300-4E-K4 230 190 1.00 1400 6.00 1950 1147 72 19.0
5 RI600X300-4E-K4 230 190 0.78 1400 6.00 2250 1323 76 23.7
6 RI600X350-4E-M5 230 300 1.35 1400 10.00 2550 1499 78 29.5
7 RI600X350-4E-M5 230 365 1.65 1400 10.0 2850 1676 80 30.4
8 RI700X400-4D-M7 415 430 0.85 1400 —- 4000 2352 65 39.0
